If you have ever asked a drafting partner for a quote on a set of audio visual drawings and then stared at the number wondering whether it was fair, you are not alone. AV CAD drafting cost is one of those line items that can vary wildly from one project to the next, and most integrators do not get a clean explanation of why.
This guide breaks down what you should actually expect to pay for AV CAD drafting in 2026, what drives the final number up or down, and how to tell whether a quote is reasonable before you sign off on it.
How Much Does AV CAD Drafting Cost in 2026?

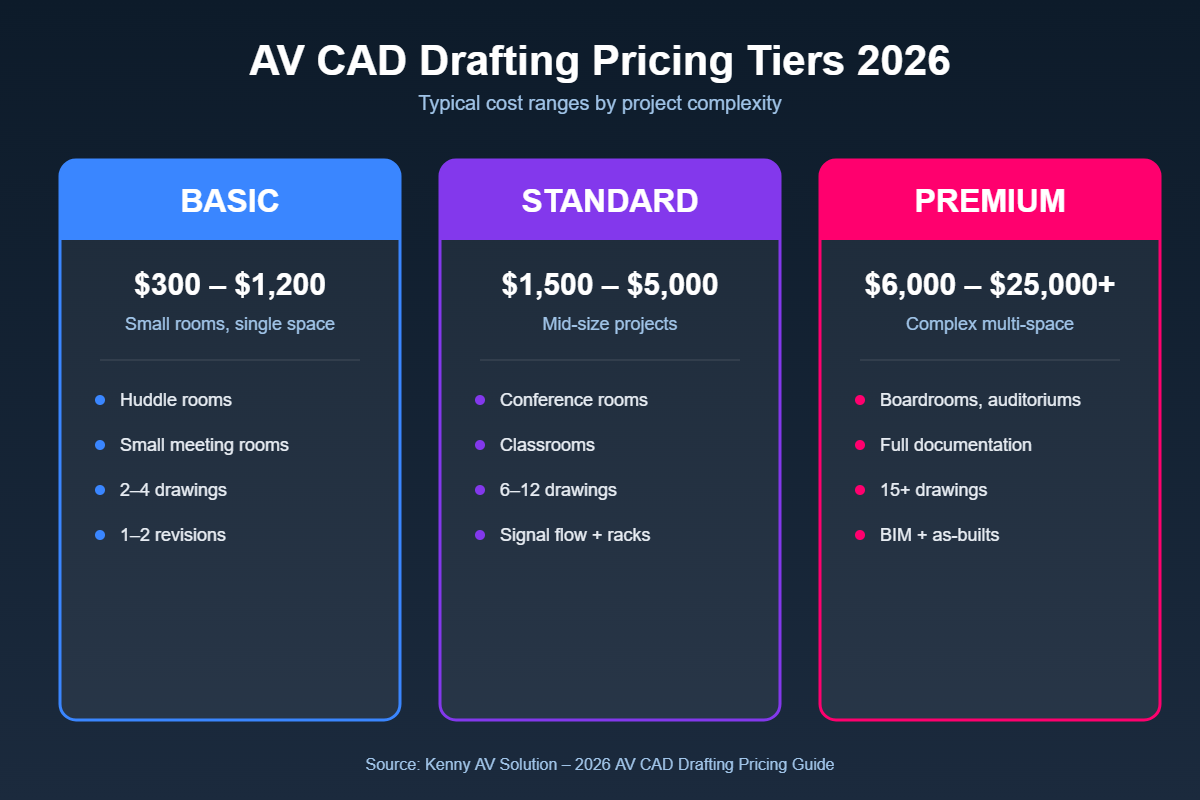

At a high level, most AV CAD drafting services in 2026 fall into three rough pricing bands. A simple huddle room or single classroom with a basic signal flow and floor plan can start around $300 to $1,200. A standard conference room or training room package, including floor plan, reflected ceiling plan, rack elevations, and a signal flow diagram, tends to land between $1,500 and $5,000. Larger multi-room jobs, boardrooms, courtrooms, auditoriums, and enterprise rollouts with full documentation sets often start at $6,000 and stretch well beyond $25,000.
Hourly rates for independent AV drafters typically run between $45 and $95 per hour in North America. Offshore and nearshore teams may bill $18 to $40 per hour, while senior AV design engineers doing the drafting themselves can reach $120 to $150 per hour when project complexity warrants it.
These numbers are not hard rules. They are meant to give you a reality check before you send out an RFQ or evaluate a bid that lands in your inbox.

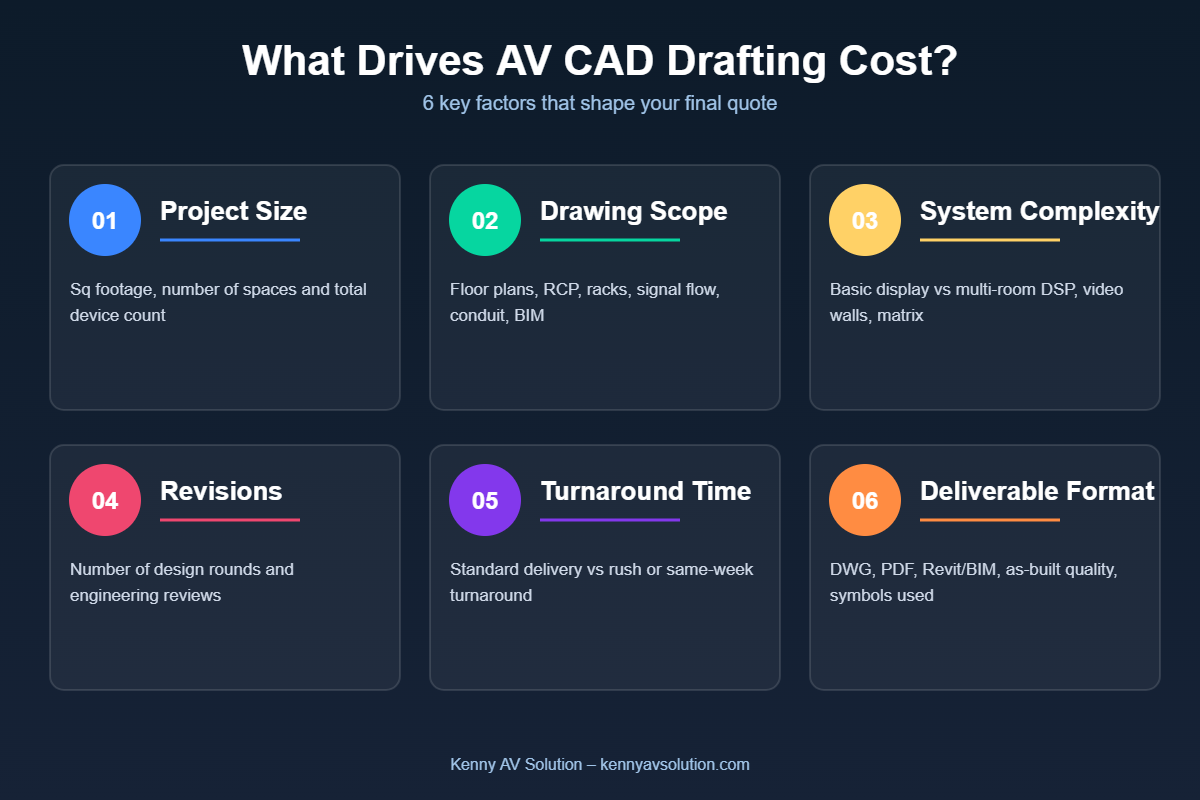

What Actually Drives AV CAD Drafting Pricing
Two jobs with the same room count can have very different price tags, and the reasons usually come down to a handful of repeatable factors. Understanding them helps you explain your quote to a client or push back when a vendor overreaches.
1. Project Size and Device Count
Square footage alone is a weak predictor. What really matters is how many devices, cable runs, and terminations need to be documented. A 2,000 square foot lobby with four displays is cheaper to draft than a 1,200 square foot esports lab with dozens of sources, a matrix switcher, and audio zones.
2. Drawing Scope
A floor plan only is very different from a full package. A typical mid-range deliverable might include a floor plan and reflected ceiling plan, rack elevations, a signal flow diagram, and a cable schedule. Each added deliverable adds hours, and therefore cost.
3. System Complexity
A fixed display with a soundbar is not the same as a dual projector boardroom with ceiling microphones, DSP, video conferencing, and control. The more devices interact, the more time your drafter spends verifying signal paths, I/O, and control logic.
4. Number of Revisions
Most drafting firms include one or two revision rounds in the base quote. Each extra round, especially after engineering or client review, is either billed at an hourly rate or bundled into a higher tier. Scope creep is one of the biggest cost multipliers in AV drafting, and it is almost always preventable with a clean design brief.
5. Turnaround Time
Standard turnaround for a mid-size project is roughly 5 to 10 business days. Rush jobs of 48 to 72 hours typically carry a 25 to 50 percent premium, sometimes more if the team has to reorganize other work to hit your deadline.
6. Deliverable Format
Clean DWG plus PDF is the baseline. If you need Revit or native BIM, IFC exports, or as-built quality drawings tied to AVIXA standards, expect the price to go up because the drafter needs more specialized skills and tools.
In-House AV Drafter vs Outsourced AV CAD Services
The other big pricing question is structural. Do you hire a drafter, or do you outsource? The answer depends on your pipeline and how predictable it is.
A full-time junior AV drafter in the United States typically costs $60,000 to $85,000 per year fully loaded, before software, training, and overhead. Add AutoCAD, Revit, Bluebeam, and Visio licenses and the stack alone can be $5,000 to $12,000 per seat annually. That only makes sense if you have enough steady drafting work to keep one or two people busy every week.
For integrators with lumpy project volume, outsourced AV CAD drafting services let you scale up and down without carrying fixed overhead. You only pay for what you ship, and you skip the cost of tools, training, and ramp time.
How to Estimate AV CAD Drafting Cost for Your Next Project
A practical way to sanity check a quote is to break it down yourself before you send the RFQ. Think through each deliverable, then estimate the hours you would realistically expect a mid-level drafter to spend on it.
As a rough guide, floor plans with device layout run about 3 to 6 hours per room. Reflected ceiling plans add 2 to 4 hours, rack elevations about 1 to 2 hours per rack, signal flow diagrams 3 to 8 hours depending on complexity, and cable schedules 2 to 6 hours for a mid-size project. Multiply by an hourly rate in the $45 to $95 range and you have a defensible ballpark.
If a vendor comes in far below that, ask how they handle revisions and engineering review. If they come in well above, ask what is included that you might have missed, like BIM deliverables, multiple design passes, or detailed as-builts.
How to Lower AV CAD Drafting Cost Without Losing Quality
The cheapest drafting quote is rarely the best value, but there are several ways to pull cost down without compromising the drawings themselves.
Start with a clear design brief. Provide a marked-up floor plan, a finalized BOM, the manufacturer data sheets, and a one-page narrative of the system intent. Every missing piece of information becomes an assumption, and assumptions become revisions.
Lock scope before drafting begins. Defining exactly which drawings are in scope and which are not prevents the slow drift that runs up hours. Use AVIXA-aligned symbols and title blocks so your drafter does not have to reinvent them. And batch your requests. A drafting partner who sees five projects from you in a month will price differently than one getting a single rush job.
Why Kenny AV Solution for AV CAD Drafting
At Kenny AV Solution, we have spent years producing clean, integrator-ready AV CAD drawings for firms across the United States, Canada, the United Kingdom, the Middle East, Australia, and beyond. Our pricing sits in the competitive mid-range, and because we specialize in AV, we do not need a learning curve to decode your BOM or your DSP layout.
We handle single-room huddle spaces all the way through enterprise campus rollouts, and we deliver in AutoCAD, Revit, Visio, and Bluebeam. Every package includes a cover sheet, symbol legend, and a checked set of drawings ready for your engineering review.
If you want a real quote on your next project, get in touch with Kenny AV Solution with your floor plan and BOM and you will have a number, a turnaround, and a clear deliverable list the same week.
Final Thoughts on 2026 AV CAD Drafting Cost
AV CAD drafting cost in 2026 is not one number. It is a spread that moves with project size, scope, complexity, turnaround, and deliverable quality. The integrators who budget well treat drafting as an engineering investment rather than a line item to squeeze, and they choose partners who document their work as carefully as they draw it.
Get the brief tight, lock scope early, and work with a drafting partner who has done this before, and you will find the price is a lot more predictable than it first looks.
